Shower Trailer | Three Station Shower Combo Trailer

MODEL | SWT 16 COMBO
SIZE | 7.5′ X 17′
NO. STATIONS |3
WASTE SIZE |515 GAL
WASTE TANK |COPOLY



_________

INTERIOR
PACKAGES
AVAILABLE:

________

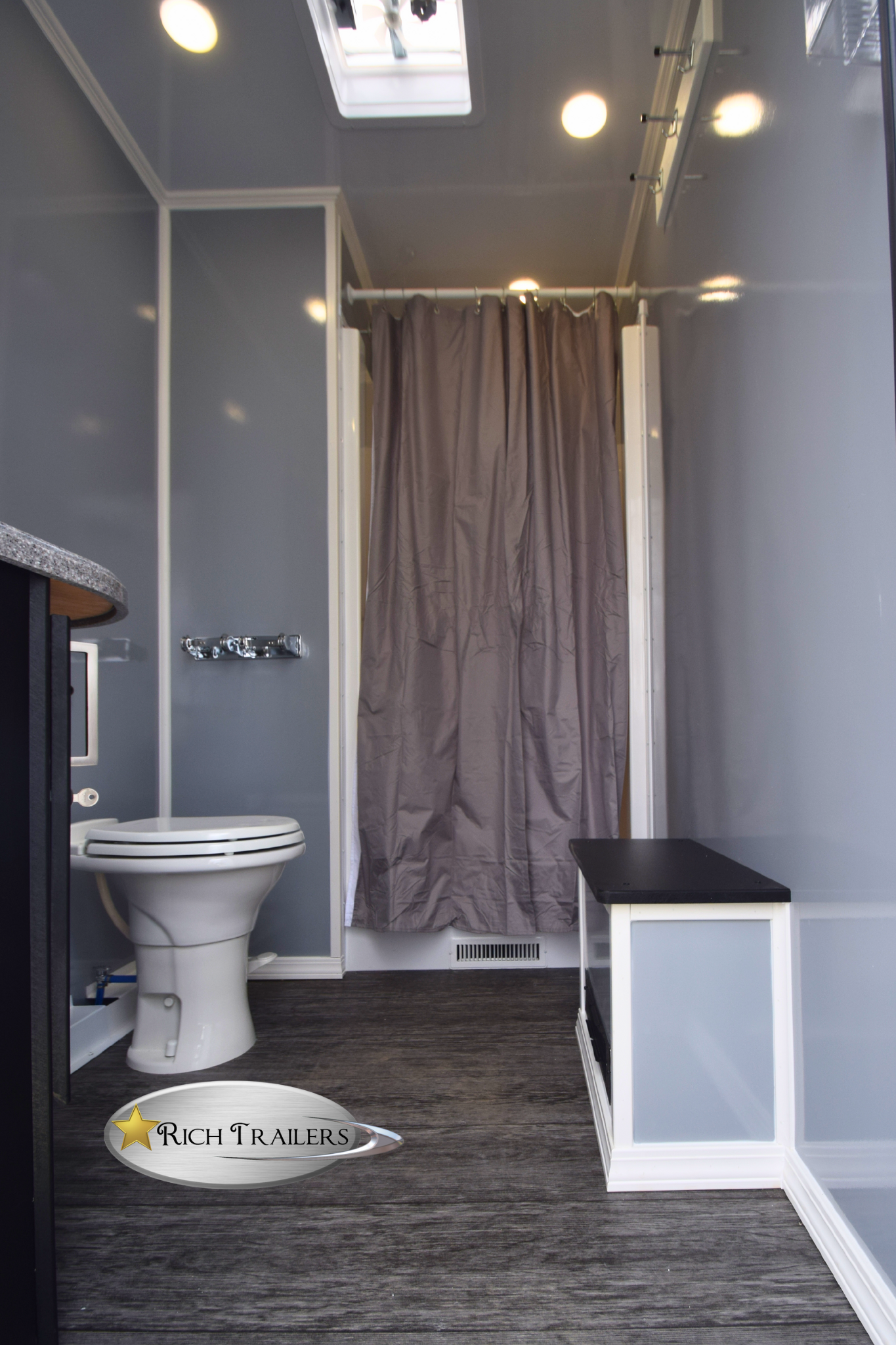

|GREY SILK

|EVEREST WHITE

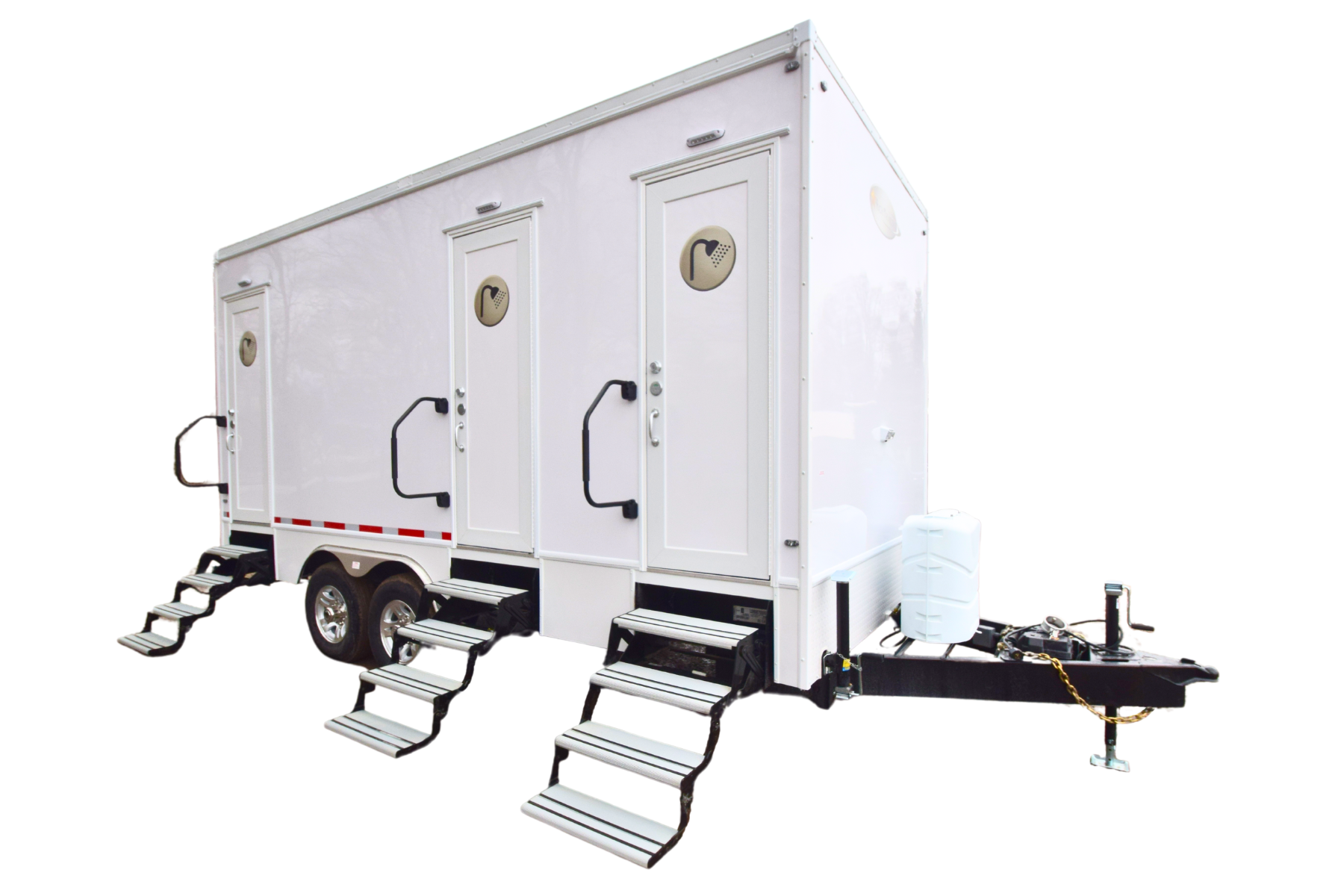

THREE STATION SHOWER COMBO

The three station shower combo operates to meet the needs of many of your special events.  For example, when used in disaster relief, it handles necessary sanitary needs.  Also, this model allows sporting event participants access to warm washups.  Secondly, another example is construction sites which may need both cleanup and toilets.  Therefore, by combining wash-rooms and restrooms the unit operates more efficiently.  Finally, another example of the combination use is factory work sites while remodeling takes place.  And, where temporary sanitation is needed.

3 Station Shower Combo Key Features

Key features include an on-board fresh water holding tank for supplying the stalls with water.  For example, a pump provides fresh water draw from the on-board fresh tank.  Additionally, a city connection  provides an outside source of fresh water for the each of the individual rooms.  Finally, both the toilets and the sinks included on the floor plan are water conserving.

Importantly, contact a product manager to discuss the features you will need in your room floor plan.  Additionally, a GPS system with tank monitoring adds value to the sanitation trailer.  Additional office space floor plans are available.

  • 7.5’x 17′ | 3-Station Specifications

    • Number of Stations: 3
    • Length | w/Tongue: 17′ | 22′
    • Width: 7.5’
    • Height w/AC: 11′ 4″
    • Freshwater: up to 200 gal
    • Approx. Wastewater: 515 gal
    • Approx. Weight: 7,920 lbs
    • Axle: Tandem



RESTROOM AND SHOWER KEY FEATURES

FIBERGLASS EXTERIOR WALLS

DURABUILT COMPOSITE FIBERGLASS ROOF

ALUMINUM STUDDING 16” O.C. OR BETTER

ALUMINUM ROOF TRUSSES 12” O.C.

OVERSIZED 12” I-BEAM CHASSIS

CO-POLY WASTE HOLDING TANK

WATERPROOF INTERIOR WALLS

COMPOSITE BASE CABINETS PER DÉCOR*
