SANITATION SERIES | THREE ROOM RESTROOM TRAILERS

MODEL | FS 63
SIZE | 6.5′ X 12.5′
NO. STATIONS |3
WASTE SIZE |400 GAL
WASTE TANK |COPOLY



_________

INTERIOR
PACKAGES
AVAILABLE:
________
|CELEBRITY
|LUXURY
|GREY SILK

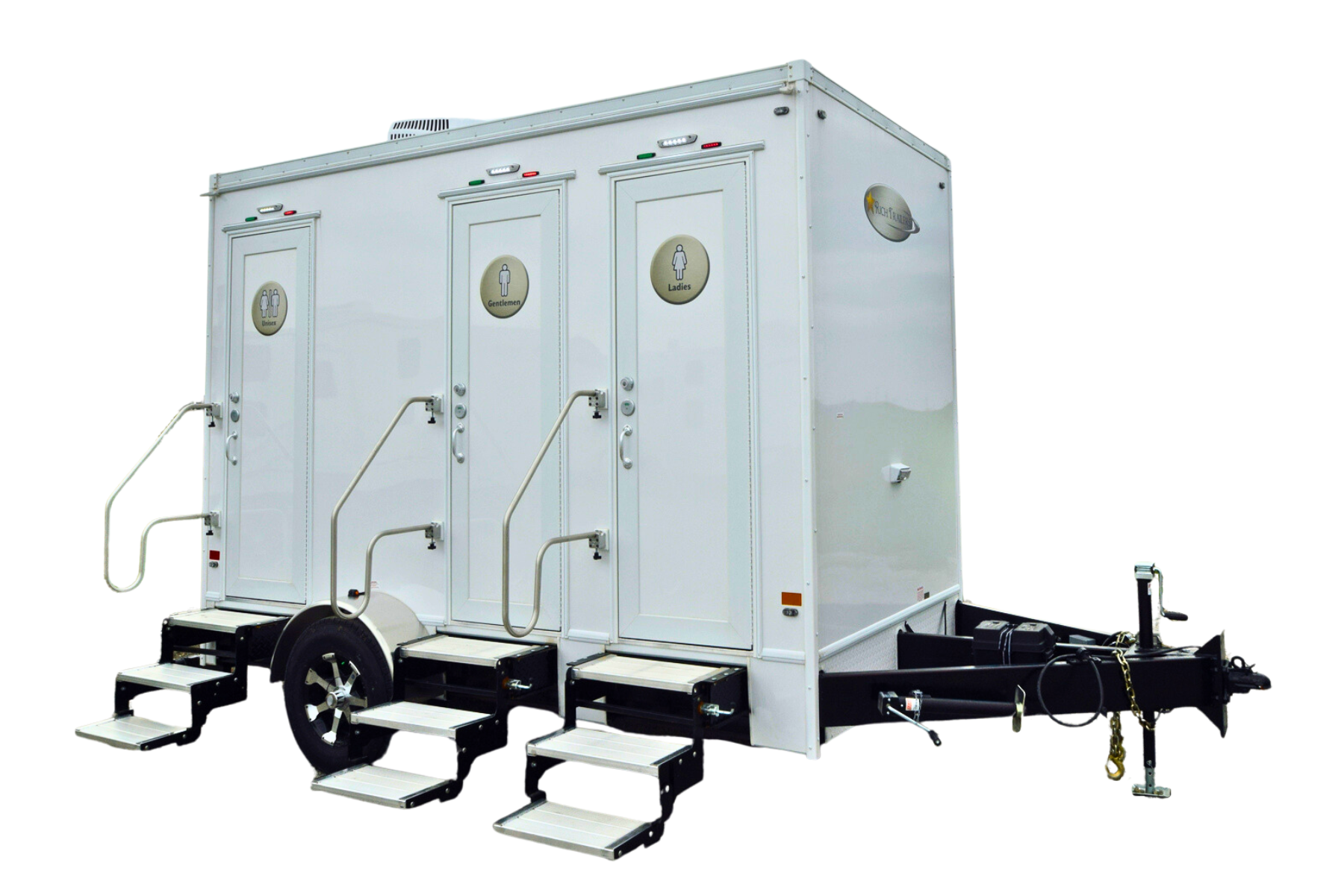

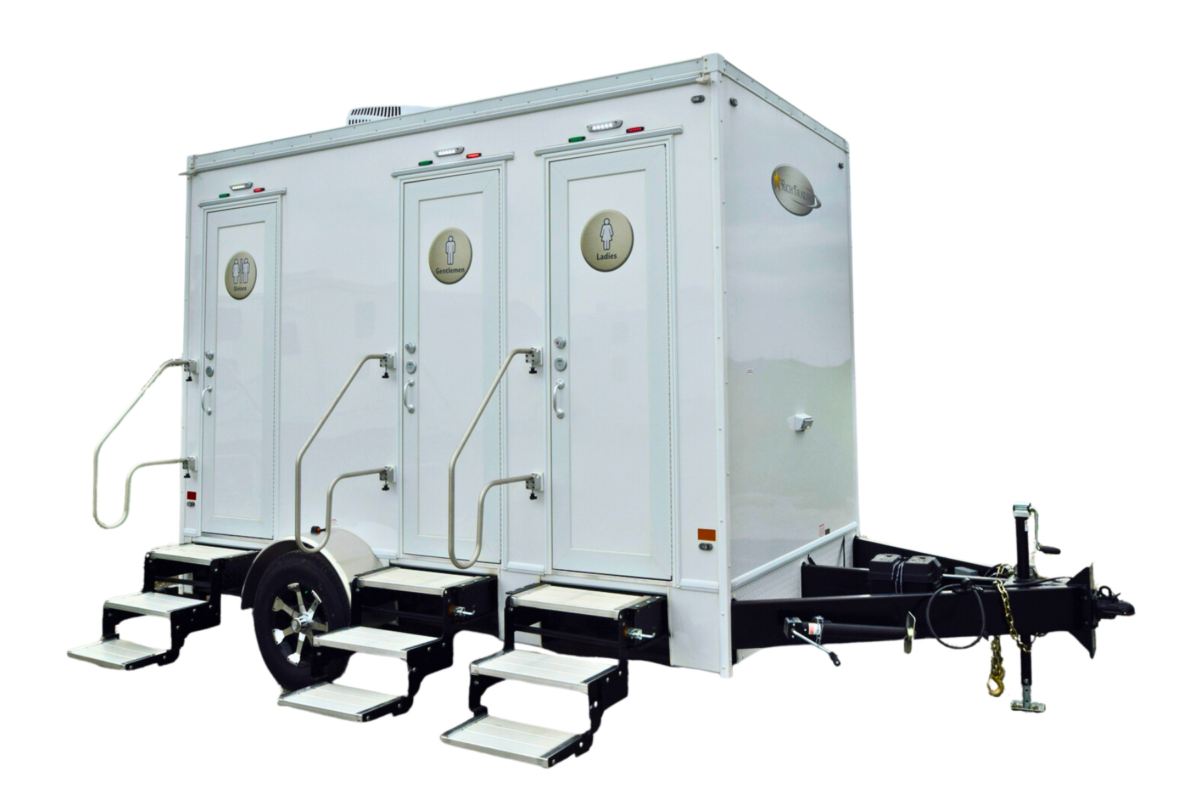

THREE STATION RESTROOM TRAILER

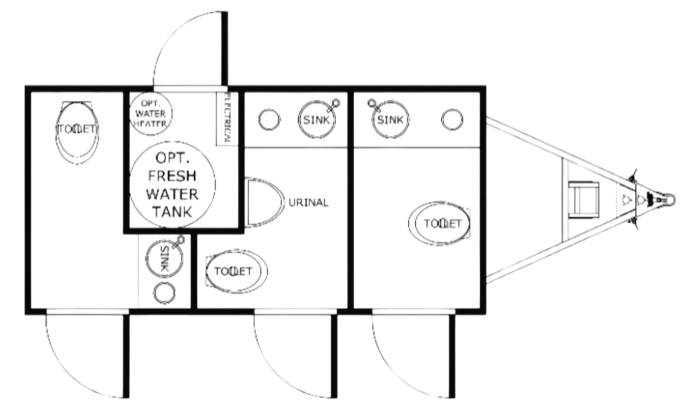

The FS 63 Sanitation three station restroom trailer model floorplan includes the key features of the Sanitation Series product line.  Chiefly, this model is easy to tow and easy to maintain. Similar to other sizes the floor plan fits into a narrow box base.  Maintaining a narrow width the delivery driver comfortably pulls the trailer to and from a delivery site.  Along with transporting, this model remains easier to locate on possible difficult destination sites.

 Three stations allow multiple configurations between male and female designated rooms.  While most events require more female stations this model may be changed to make all rooms male.  Or if necessary, all rooms may be labeled as female stalls.

KEY FEATURES OF SANITATION SERIES PORTABLE TRAILER

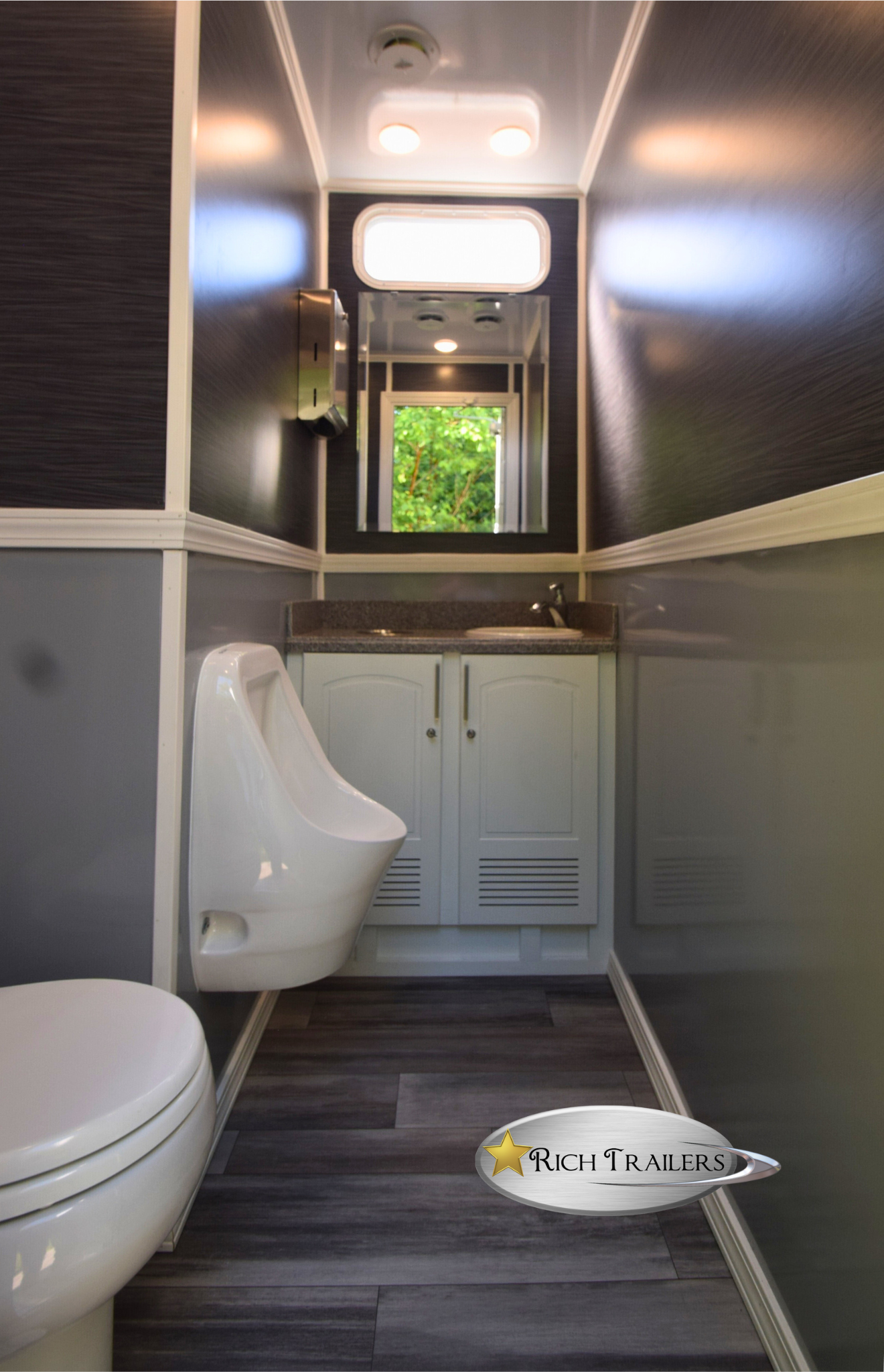

Among the key features, the ability to locate the trailer is important.  Gps installation creates a safer rental when the trailer can be located with technology. Along with key features, the Sanitation three station restroom trailer offers a standard water- proof decor package.  Moreover, this gray décor package suits most event uses.  Firstly, an easy to clean grey fiberglass interior wall accents the model.  Also, solid surface counter tops installed in each room offer easy to clean durability. Secondarily, modern designer wall features highlight the trailer. Thirdly, the trailer decor offered does it all, from luxury parties to remote construction locations.   Also, see the color and feature options available on the restroom decor page of this site.

  6.5’x12.5′ | 3-Station Specifications

  • Number of Stations: 3
  • Length | w/Tongue: 12.5′ | 17.5′
  • Width: 6.5’
  • O.A. Width with Steps Out: 116″
  • Height w/AC: 11’6″
  • Freshwater: up to 200 gal
  • Wastewater: 400 gal
  • Weight: 5,840 lbs
  • Axle: Single



Sample Construction Cut Away

Sample Construction Cut Away



KEY FEATURES

FIBERGLASS EXTERIOR WALLS

DURABUILT COMPOSITE FIBERGLASS ROOF

ALUMINUM STUDDING 16” O.C. OR BETTER

ALUMINUM ROOF TRUSSES 12” O.C.

OVERSIZED 12” I-BEAM CHASSIS

CO-POLY WASTE HOLDING TANK

WATERPROOF INTERIOR WALLS

COMPOSITE BASE CABINETS PER DÉCOR*
