Shower Trailer |Sixteen Station Shower Trailer

MODEL | SWT  4416 GN
SIZE | 8.5′ X 44′
NO. STATIONS |16
WASTE SIZE | 1800 GAL
WASTE TANK |COATED STEEL



_________

INTERIOR
PACKAGES
AVAILABLE:

________

|GREY SILK

|EVEREST WHITE

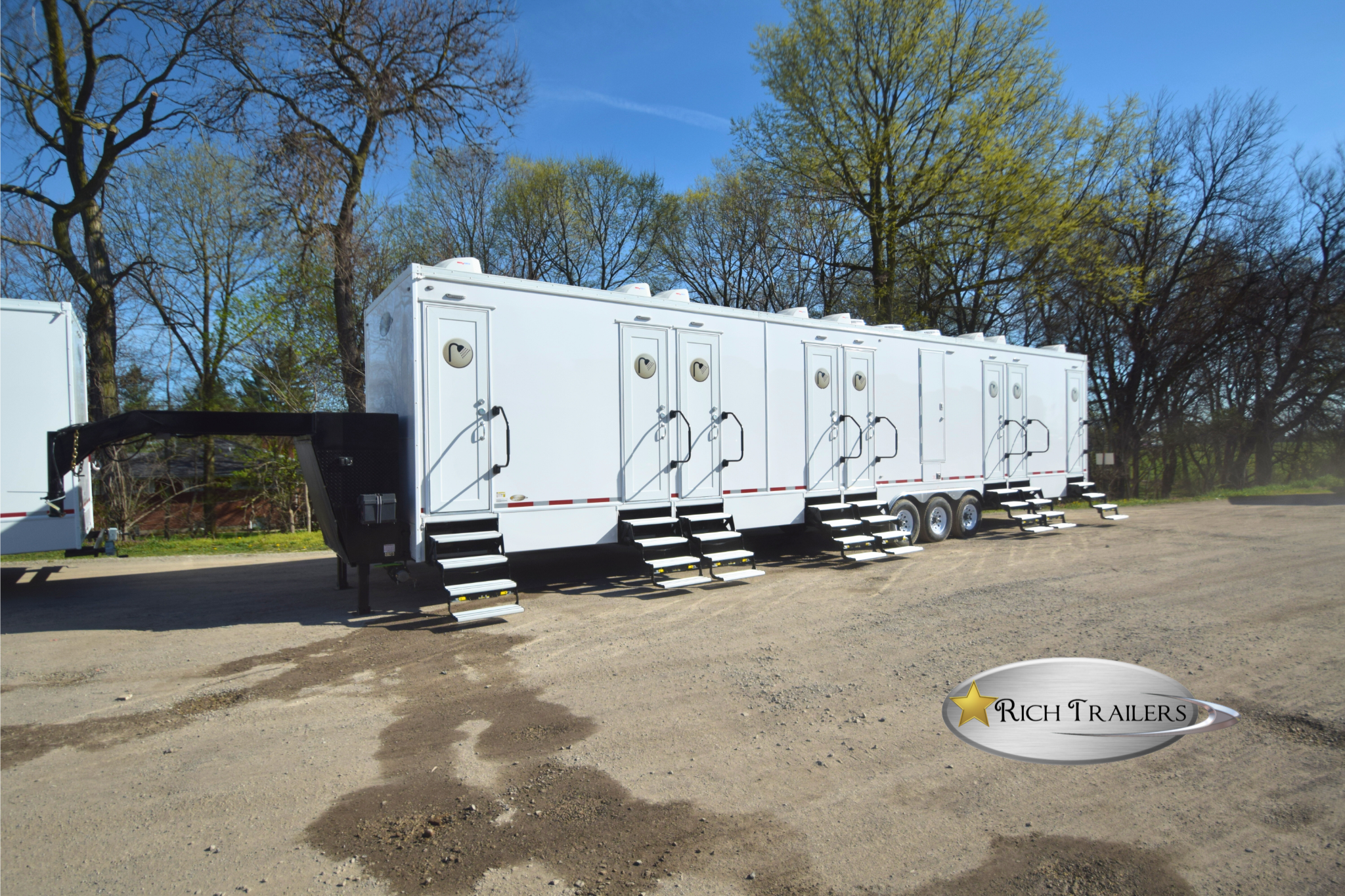

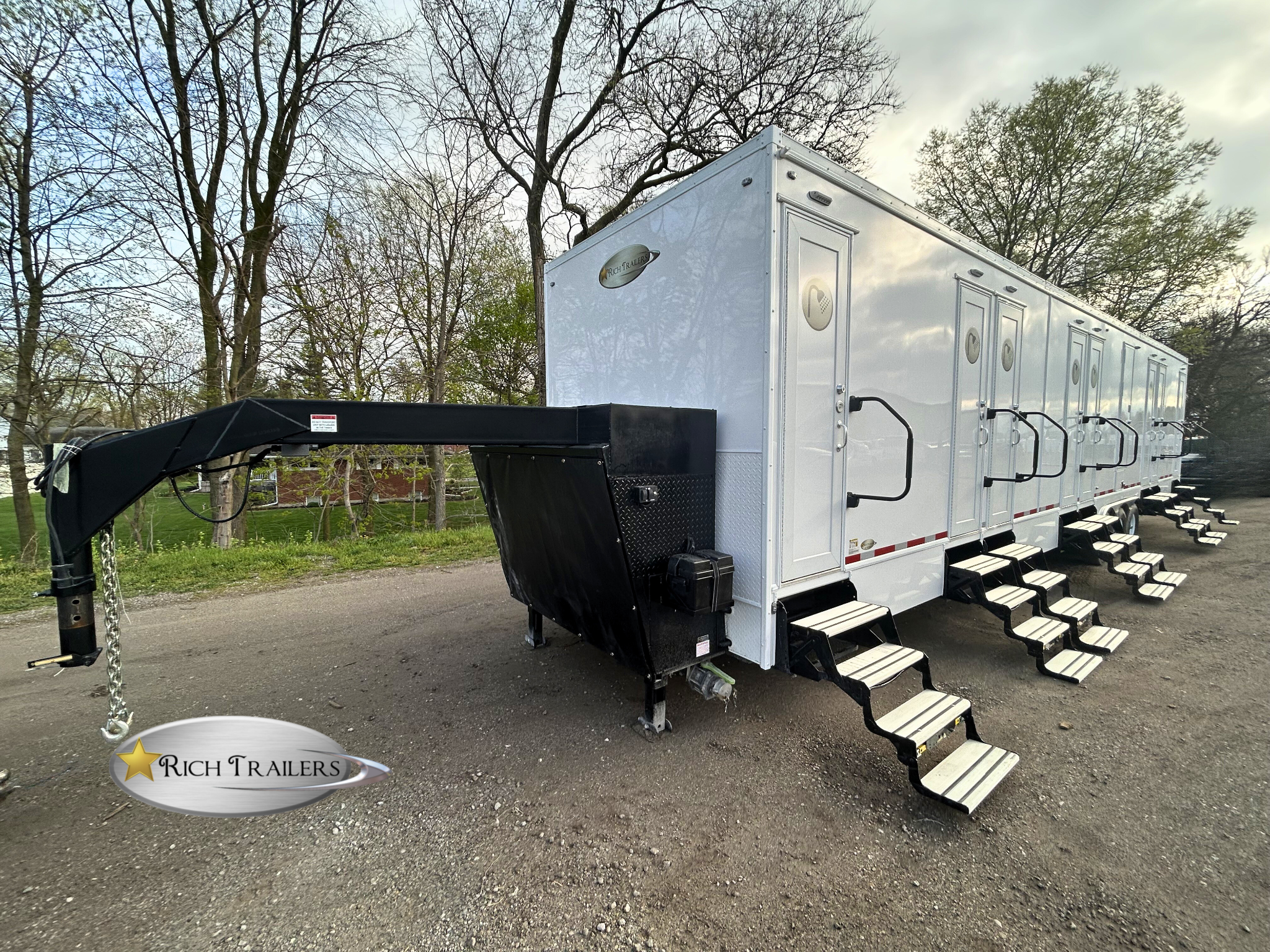

SIXTEEN STATION SHOWER TRAILER

As the name implies, the sixteen-station shower trailer model offers sixteen private shower rooms.  In addition, this large model features a large mechanical room. Importantly, the mechanical room holds the operating systems for the trailer.  For example, the room accommodates up to 500 gallons of on-board fresh water supply.  At the same time, the mechanical room holds additional operating components of the wash room trailer.  For example, several on-demand water heaters mount to the mechanical room wall for easy access.

Additionally, the water pump, the pressure tank and the shutoff valves mount in the mechanical room.  Besides the fresh water, an oversized chassis cradles a large waste holding tank.  Of course, to conserve water, the shower rooms feature low flow fixtures.  For example, the water heads flow at a rate of 1.5 gallons in order to preserve the water use.  For durability, the water lines are installed with a  plastic Pex material.  Indeed,this material is flexible and more durable in cold weather.

ADDITIONAL SHOWER TRAILER KEY FEATURES

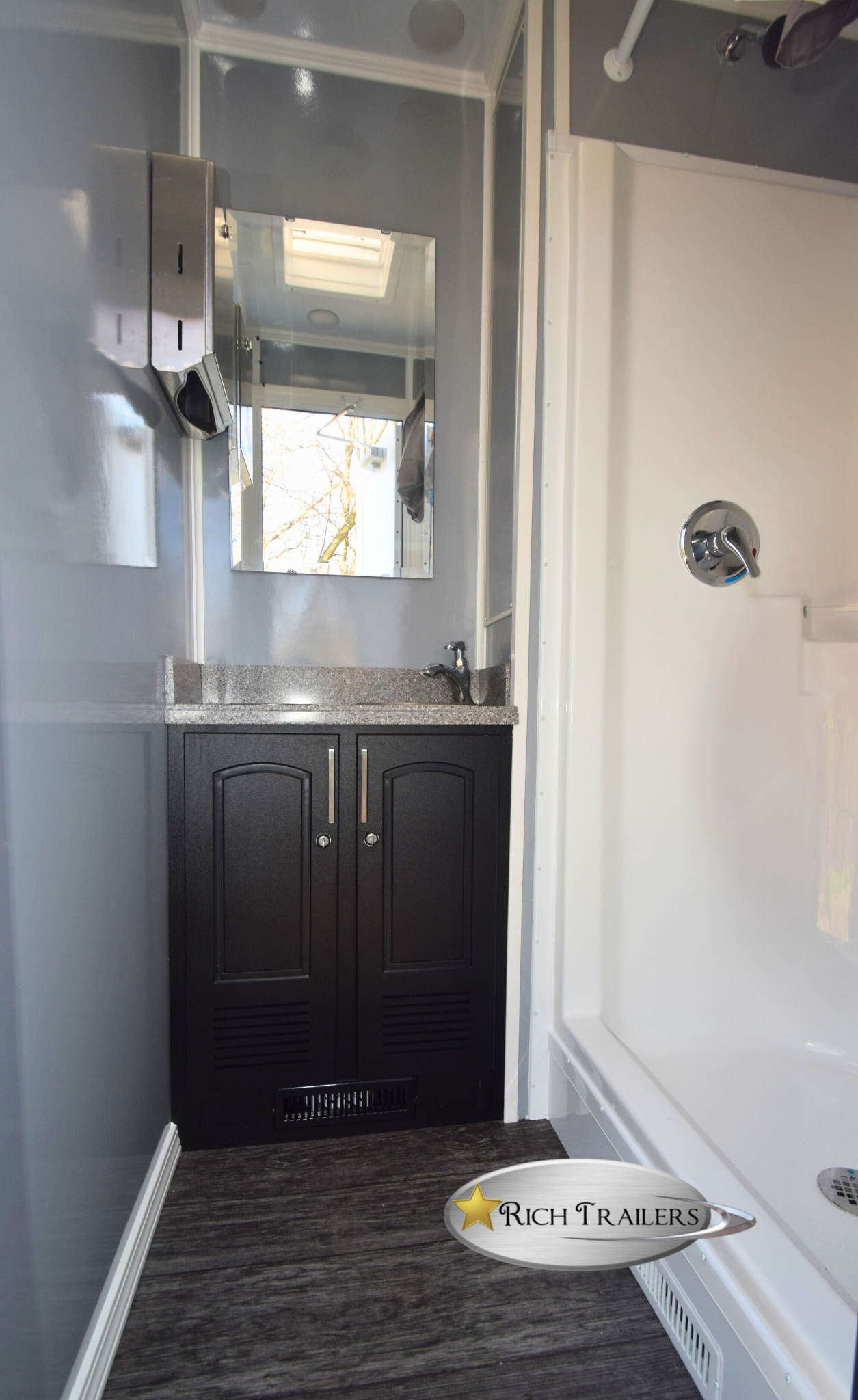

While this model remains built to be durable, the interior walls feature an attractive, water resistance, fiberglass finish.  Additionally, a faux marble, composite shower surround lines each shower stall.  Also included, a bench seat which allows space to change clothes.  On the wall, coat hooks provide space to hang towels or clothes.  Important to note, each room provides a privacy lock on the door.  Certainly, clients feel comfortable with lockable, private and convenient stalls.  Additionally, every room individually controls the shower heater temperature.  Finally, more floor plans are offered which include toilets and sinks in each of the washing rooms.

  •   8.5’ x 44′ | 16-Station Specifications
    • Number of Stations: 16
    • Length | w/Tongue: 44′ | 53′
    • Width: 8.5’
    • Height w/AC: 11’8″
    • Freshwater: up to 500 gal
    • Approx. Wastewater: 1800 gal
    • Approx. Weight: 18,620 lbs
    • Axle: Triple

RESTROOM AND SHOWER KEY FEATURES

FIBERGLASS EXTERIOR WALLS

DURABUILT COMPOSITE FIBERGLASS ROOF

ALUMINUM STUDDING 16” O.C. OR BETTER

ALUMINUM ROOF TRUSSES 12” O.C.

OVERSIZED 12” I-BEAM CHASSIS

CO-POLY WASTE HOLDING TANK

WATERPROOF INTERIOR WALLS

COMPOSITE BASE CABINETS PER DÉCOR*
